Cheap Price Double Cutting Blade Light Keel Steel Metal Forming Machine Fully Automatic Cold Forming Machine

Cheap Price Double Cutting Blade Light Keel Steel Metal Forming Machine Fully Automatic Cold Forming Machine

Select the number of specifications

Please check the product information you want!

Product Detail

sic Info.

Model NO.

Sintuowei

Tile Type

Colored Steel

Certification

CE, ISO

Condition

New

Customized

Usage

Wall

Transmission Method

Motor

Drive Mode

Chain

Material of Shafts

45# Steel

Machine Frame

350 H Steel Welded

Material Thickness

03-0.8mm

Type

Automatic

PLC Langauge

English and as Your Request

Color

Blue or Accordng to Customers′request

Technical Support

Whole Life of Machine

Voltage

380V or as Customer′s Request

Speed

13-15m/Min

Material of Rollers

C45 Steel Quenched and Chrome

PLC Brand

Delta

Transport Package

Nude with Waterproof Plastic Packaging

Specification

4000mm*1100mm*1200mm

Trademark

Sintuowei

Origin

China

HS Code

84552210

Production Capacity

50sets/Month

Product Description

cheap price double cutting blade light keel steel metal forming machine Fully automatic cold forming machine

The c and omega machine can be made into one machine, and the product sleeves can be replaced during use. This two type profile sheet cannot be produced at the same time. If your demand is large, it is recommended you use one machine frame and two cutting plate, thus the two type sheet can be produced at the same time. This machine using one machine's frame, two machine cutting plate can be produced at the same time.

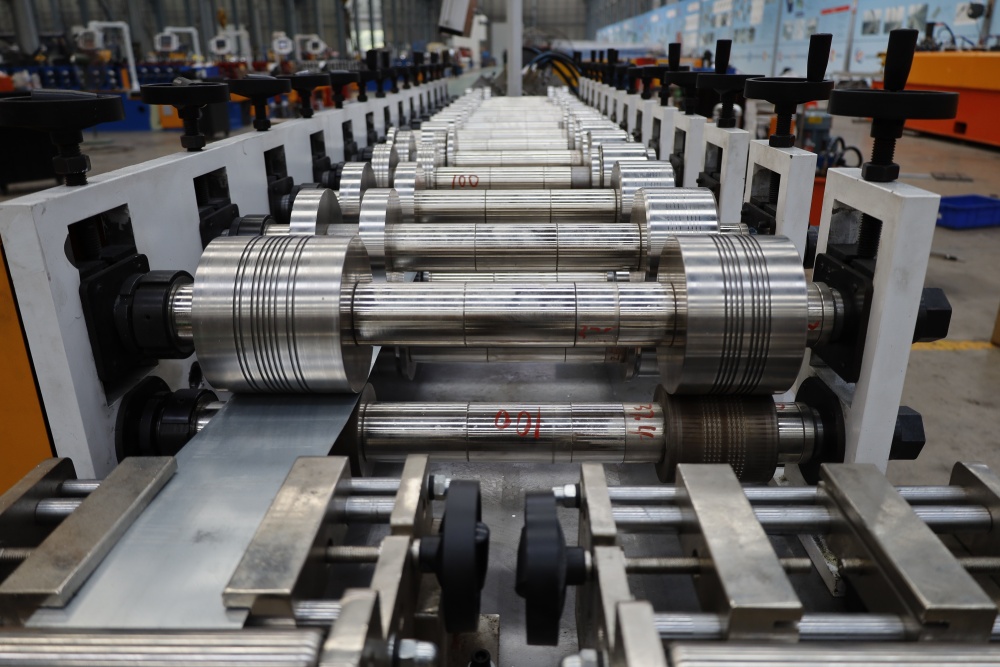

The whole machine pictures

The machine details

If you want more machine details,contact me please

Material Type	Pre-painted steel coil & galvanized coils
Thickness	0.3-0.8mm
Yield strength	235Mpa.Q345Mpa, Q550Mpa
Roller material	Quenched and tempered treatment, hard chrome coated.05-0.07mm
Forming speed	About 15-20m/min
Speed adjusting mode	AC Frequency
Roller drive	Decelerating motor + Chain drive
Cutting mode	Hydraulic cutting
Cutter material	Cr12 mould steel
Length measurement	Encoder
Control mode	Panasonic or Delta PLC
Main motor	5.5KW
Hydraulic station motor	4KW
